DAVHD

Double Deflection Supply Register - Vertical Front - OBD

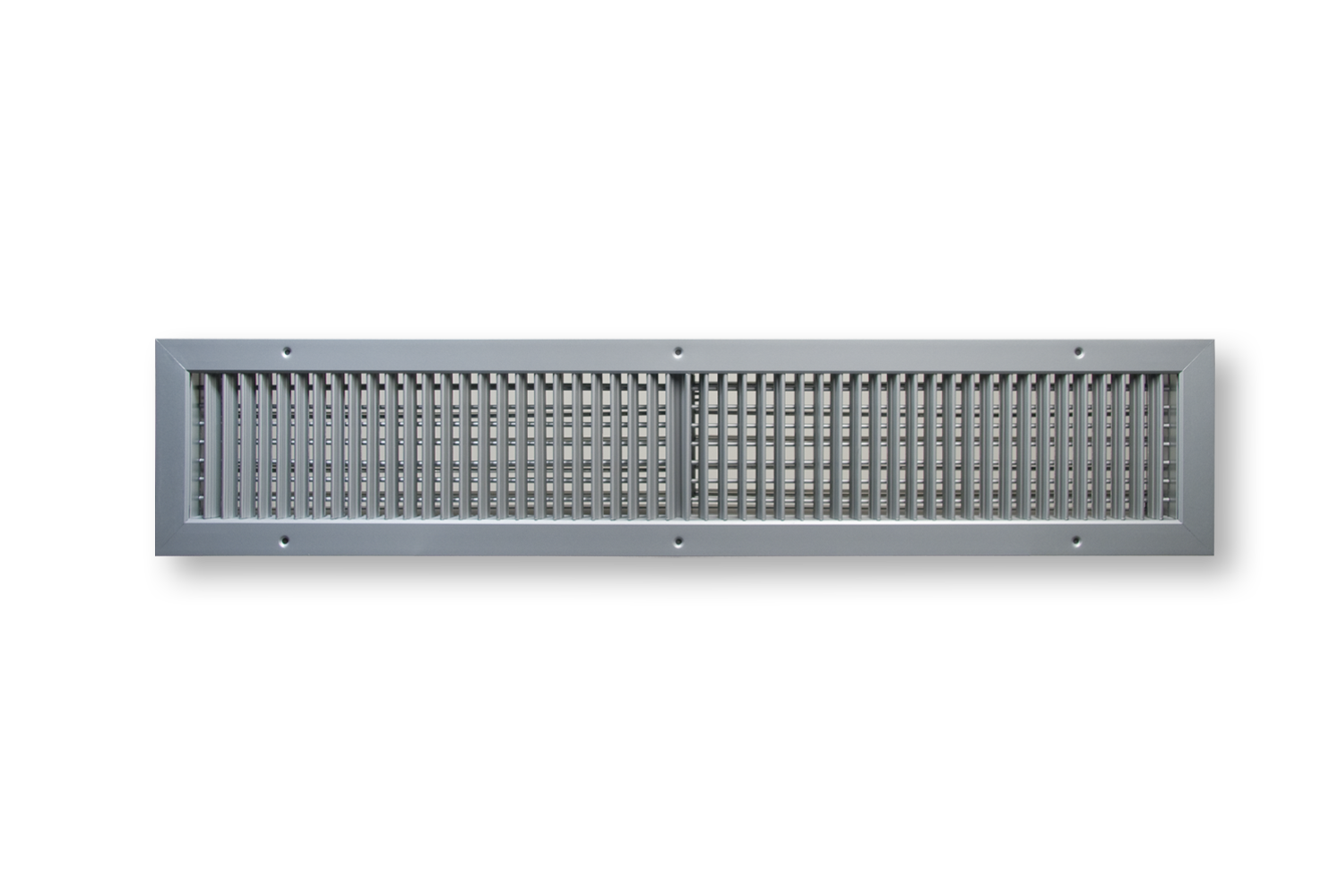

Dayus DAVHD Double Defection Supply Opposed Blade Damper Mullion Long

Dayus DAVHD Double Defection Supply Opposed Blade Damper thumbnail

Dayus DAVHD Double Defection Supply Opposed Blade Damper Mullion Long thumbnail

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

The DAHVD is a double deflection supply grille with front vertical blades and rear horizontal blades. The aluminum grille is designed with two sets of individually adjustable blades to direct airflow, while the opposed blade damper adjusts the volume of air.

Features

Two sets of adjustable, semi-airfoil blades on 2/3" spacing
Architectural aluminum construction with extruded frame and roll-formed blades
Rattle-free performance with pressure-fitted blades
Opposed blade damper with concealed operator design
Sealing gasket to prevent streaking on walls or ceiling
Available on 2" standard dimensions
Custom sizes manufactured up to 1/16" increments

Finishes


W \| White		S \| Silver		M \| Mill

	W - White
	S - Silver
	M - Mill

Common Uses

The DAVHD is commonly used as a sidewall register for supply air. It's easy to install and the adjustable deflection makes it ideal in most ceiling and surface mount uses.

Additional Options

DAVHD-TB \| No Screw Holes	DAVH \| No Damper
DAHVD-AA \| All Aluminum Construction	DAHVD \| Horizontal Front

DAVHD Submittal

DAVHD-TB \| No Screw Holes	DAVH \| No Damper
DAHVD-AA \| All Aluminum Construction	DAHVD \| Horizontal Front
