DAVD-WF

Single Deflection Supply Register w/ Wide Flange - Vertical Blade - OBD

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

The DAVD-WF is a single deflection aluminum grille with individually adjustable blades and a wide flange. The vertical blades can adjust the spread of air, while the opposed blade damper adjusts the volume of air.

Features

Wide flange for additional mounting surface coverage.
Adjustable, semi-airfoil blades on 2/3" spacing
Architectural aluminum construction with extruded frame and roll-formed blades
Rattle-free performance with pressure-fitted blades
Opposed blade damper with concealed operator design
Sealing gasket to prevent streaking on walls or ceiling
Available on 2" standard dimensions
Custom sizes manufactured up to 1/16" increments

Finishes


W \| White		S \| Silver		M \| Mill

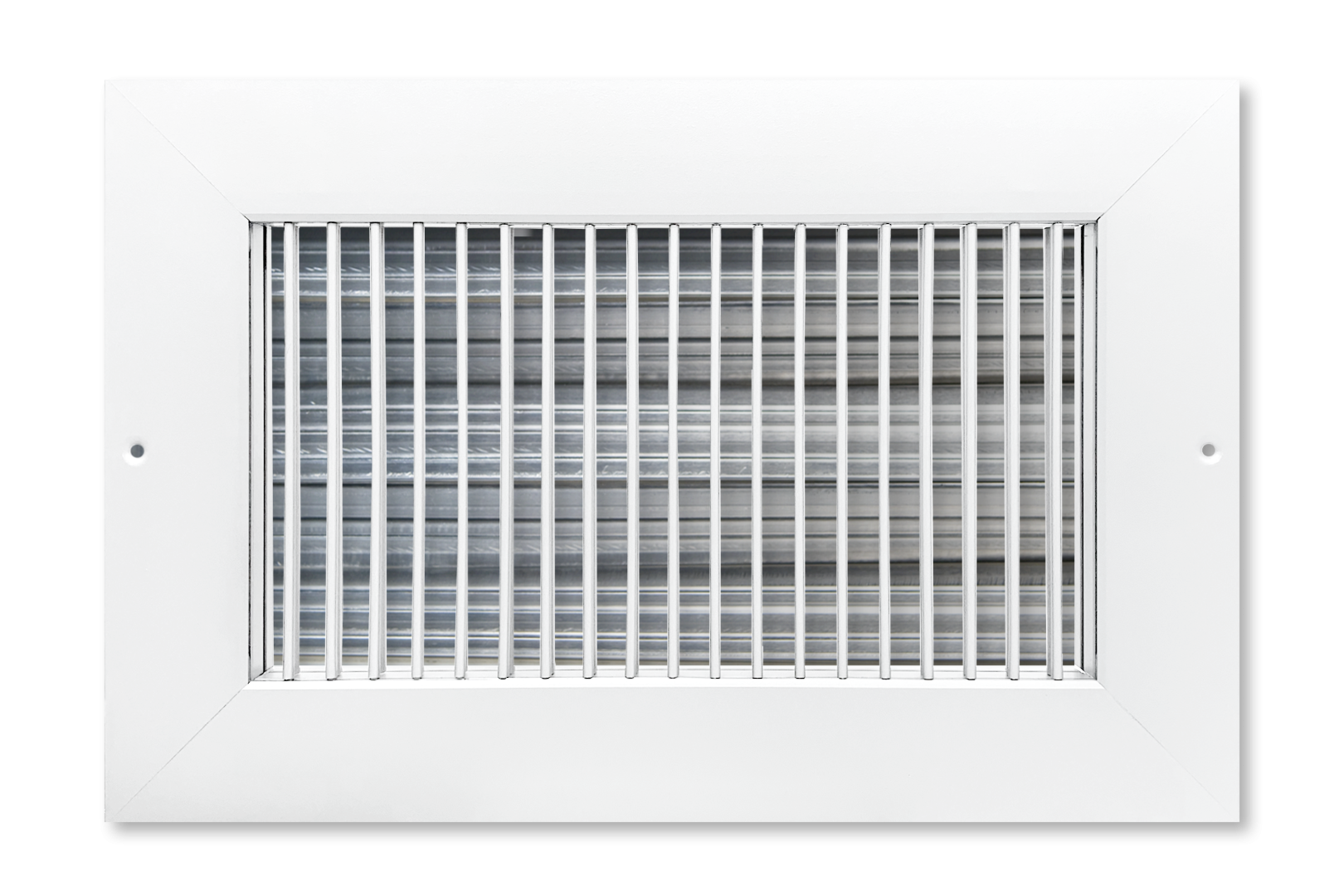

	W - White

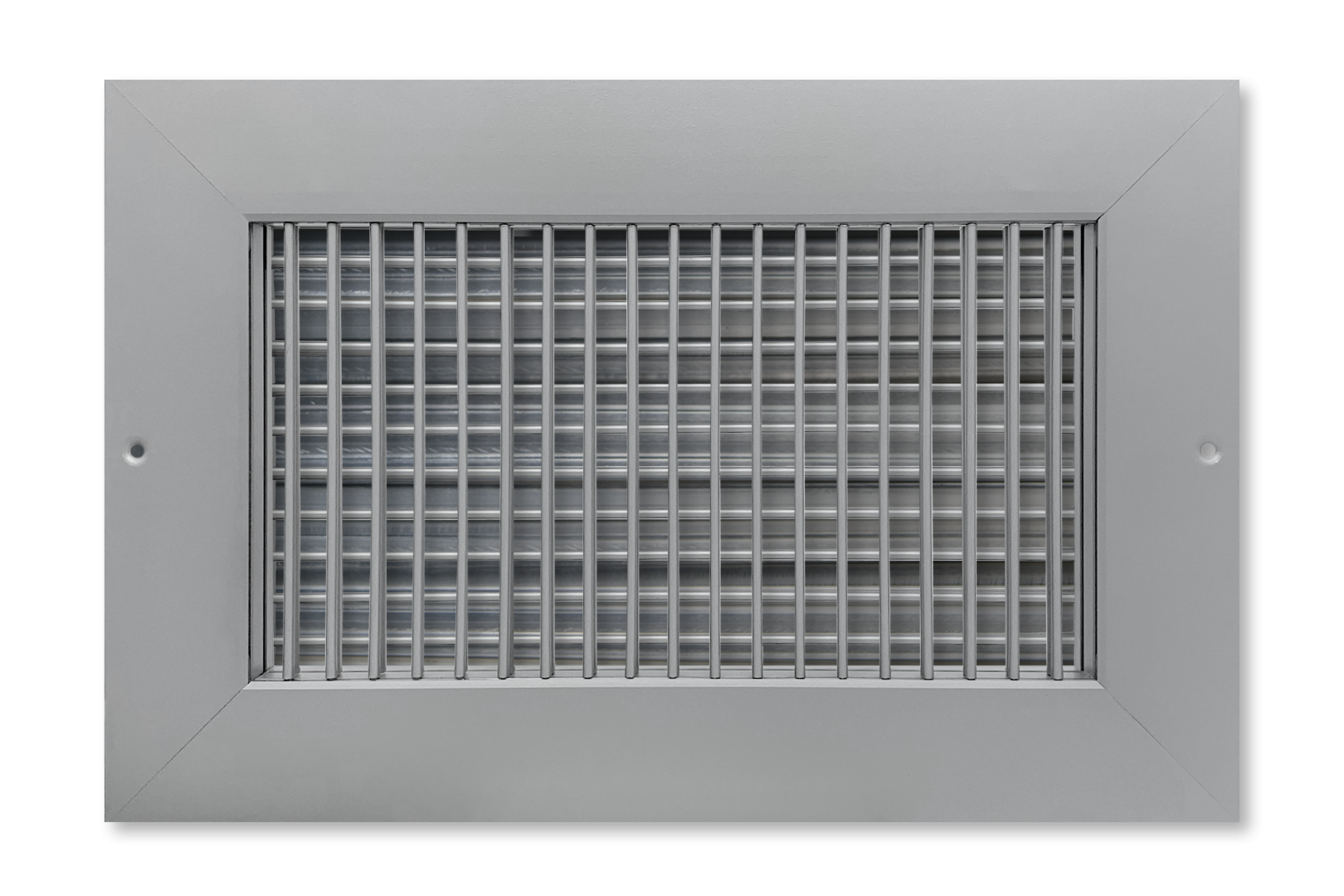

	S - Silver
	M - Mill

Common Uses

The DAVD-WF is commonly used as a sidewall grille for supply air. It's easy to install and the adjustable deflection makes it ideal in most ceiling and surface mount uses.

Additional Options

DAVD-WF-TB \| No Screw Holes	DAV-WF \| No Damper
DAVD-WF-AA \| All Aluminum	DAHD-WF \| Horizontal Blades

DAVD-WF Submittal Form

DAVD-WF-TB \| No Screw Holes	DAV-WF \| No Damper
DAVD-WF-AA \| All Aluminum	DAHD-WF \| Horizontal Blades
