30º Extruded Return Air Grille

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

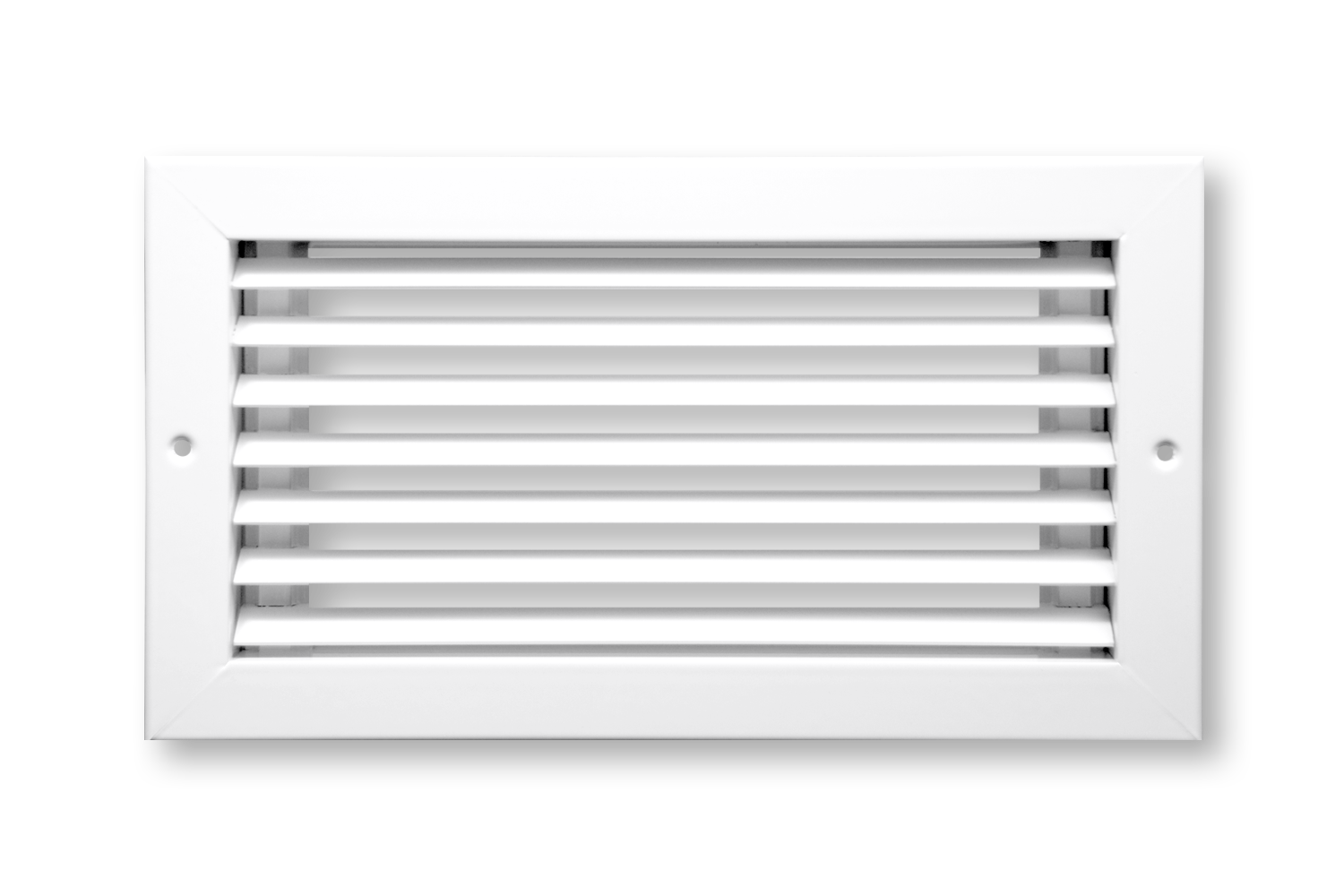

The DARHE-30 is a high flow return grille made out of fully extruded aluminum that won't warp, bend, rattle, or rust. The blades are set on a 30° deflection.

Fixed 30° deflection on 3/4" spacing for reduced sightlines
Fully extruded construction from architectural aluminum
Hidden supports for a clean appearance
Available on 2" standard dimensions
Custom sizes manufactured up to 1/16" increments
Available in durable powder coat finish standard

	W - White
	S - Silver
	M - Mill

The DARHE-30 is commonly used in sidewall or ceiling applications where durability and quality are necessary.

S | Silver

FB | Flat
Black

Select

Prime Coat

Special
Order

DARHED-30 \| Opposed Blade Damper	DARHE-30-TB \| No Mounting
DARHE-30-BS \| Bird Screen	DARHE-30-IS \| Insect Screen
DARHE-30-AA \| All Aluminum	DARHE-45 \| 45° Deflection
DARHEJ-45 \| Mud-In Flange

DARHE-30 Submittal

DARHE-30 Detail Drawing DARHE-30 Detail Drawing - 2-Piece Construction
