DABLRN

Bar Linear Grille w/ No Flange & Removable Core

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

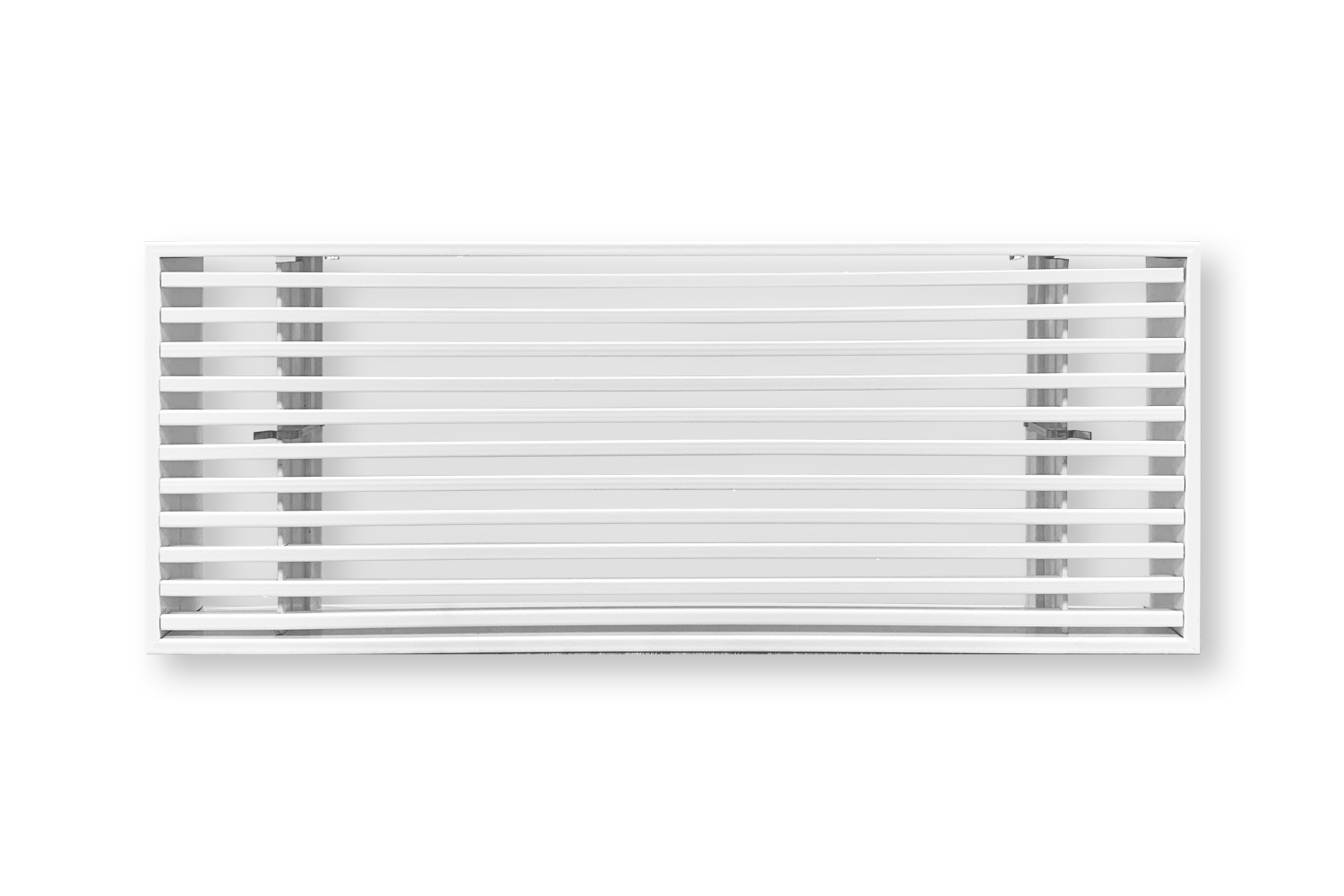

The DABLRN is a fully extruded bar linear grille with no flange and removable core. Its customizable, fixed blades are parallel to the long dimension.

Features

Fixed blades are parallel to the long dimension unless specified otherwise
No flange frame designed for a clean, built-in appearance
The core is fully removable for cleaning and maintenance and held in place with pressure clips
Select from six blade options
Fully extruded architectural aluminum construction
Available on 1/2" standard dimensions
Custom sizes manufactured up to 1/16" increments
Available in durable powder coat finish standard

Blade Options


-00 \| 0° Deflection	-01 \| 0° Deflection	-15 \| 15° Deflection

-30 \| 30° Deflection	-82 \| 0° Air Flow	-84 \| 0° Heel Proof (Narrow)

Finishes


W \| White	S \| Silver	M \| Mill

B \| Brown	FB \| Flat Black	Special Order

	W - White
	S - Silver
	M - Mill

Common Uses

The DABLRN is commonly used in ceiling or sidewall applications. It is not designed for floor use.

Mounting Options


-C \| Concealed Brackets		-D \| Sidewall Screws (Removable Core Only)

-TB \| No Mounting

Additional Options

DABLDRN \| Opposed Blade Damper	DABLN \| Fixed Core
DABLRH \| Drywall-In Flange	DABLRJ \| Mud-In Flange

DABLRN Submittal

DABLRN-30 Detail Drawing DABLRN-82 Detail Drawing DABLRN-84 Detail Drawing DABLRN Detail Drawing DABLRN-00 Detail Drawing DABLRN-01 Detail Drawing DABLRN-15 Detail Drawing Bar Linear Concealed Bracket (-C) Installation Instructions
